Rechargeable 3.2V 105ah Lifepo4 Lithium Ion Battery Cells For Electric Vehicles And Energy Storage

Brand Name : TINKO/OEM

Model Number : 27175200

Certification : CE/ROHS/MSDS/UN38.3

Place of Origin : China

MOQ : 2000PCS

Price : Negotiable

Supply Ability : 100pcs/day

Packaging Details : parer carton

Battery Type : Lifepo4

Voltage : 3.2V

Capacity : 105AH

Weight : 2060g

Size : 27*175*200mm

Origin : Dongguan, China

Contact Now

Stable LFP27175200 3.2V 105ah Lifepo4 Battery Cell for Electric Vehicles and Energy Storage System

Product Description

Lithium Iron Phosphate (LiFePO4) batteries are a type of lithium-ion battery known for their stability, safety, and long life. They are widely used in various applications, including electric vehicles, renewable energy storage, and portable electronics and provide a stable voltage output throughout their discharge cycle, which contributes to consistent performance. It capability of handling high discharge currents, making them suitable for applications requiring quick bursts of power. Also they are more environmentally friendly than other lithium-ion chemistries, sinceit does not contain toxic metals like cobalt.



Product Parameters



                 Item


               Specification                          Note
Appearance


No cracks, scratches, deformations, stains, electrolyte leaks, etc



Dimension(Thickness×Width×Height)


 (27±0.5)mm*(175±0.3)mm* (200±0.3)mm


Weight


 (2060±50)g


Nominal Voltage


 3.2V


AC Resistance


 (0.4～0.7)mS


DC Resistance


 ≤1.5mΩ 50%S0C


Nominal Capacity


 105Ah


Operating Voltage

 2.0V～3.65V


Cell Thickness


 (27±0.5)mm


Energy Density


 163Wh/kg




                      Item     Specification                                Note


Maximum continuous charging current



0.1C


 0℃~5℃ 0%SOC～80%SOC


0.5C


 5℃~15℃ 0%SOC～100%S0C


1.0C


 15℃~35℃ 0%S0C～100%SOC


2.0C


 15℃~35℃ 0%SOC～80%SOC


0.5C


 35℃~55℃ 0%SOC～100%SOC


Maximum allowable charging voltage


 3.9V


Maximum permissible charging temperature range


 0℃~55℃


Optimum charging temperature range


 10℃~35℃


Constant current charging capacity ratio


 >90% 2C




                    Item                     Specification


                   Note



Maximum continuous discharge current


 2C temperature rise of the cell was<15℃(25℃)


Maximum pulse discharge current


 5C(10S)

Battery preface temperature ≤45℃,
Continuous time10s,(25℃)


Minimum permissible discharge voltage


 1.8V ≤0 ℃ discharge limit voltage


Maximum permissible discharge temperature range


 -30℃~60℃


Optimal discharge temperature range


 10℃~35℃


Room temperature discharge capacity


 ≥105Ah


High temperature discharge capacity


 ≥105Ah 55℃,1C




Low temperature discharge capacity/energy retention rate







 ≥90%/≥80% 0℃,1C, cut off voltage 1.8V
≥85%/≥70% -10℃,1C, cut off voltage 1.8V
≥80%/≥60% -20℃,1C, cut off voltage 1.8V
≥70%/≥50% -30℃,1C, cut off voltage 1.8V


Discharge capacity/energy ratio


 ≥95% 25℃,2C


Charge and discharge energy efficiency


 ≥90% 25℃,1C






Rechargeable 3.2V 105ah Lifepo4 Lithium Ion Battery Cells For Electric Vehicles And Energy Storage





Product Tags:

rechargeable lithium battery cell



rechargeable lithium ion battery cells



3.2v lithium battery cell


Buy cheap Rechargeable 3.2V 105ah Lifepo4 Lithium Ion Battery Cells For Electric Vehicles And Energy Storage product

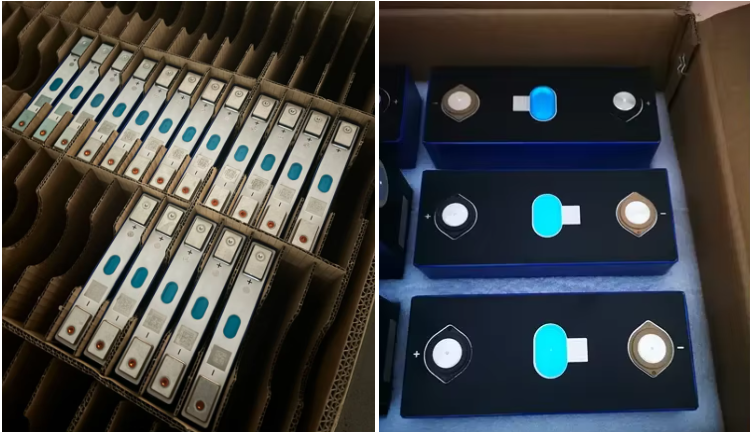

Rechargeable 3.2V 105ah Lifepo4 Lithium Ion Battery Cells For Electric Vehicles And Energy Storage Images
