51.2V 230Ah Golf Cart LiFePO4 Lithium Battery With Smart BMS 11.8KWH 48V

Brand Name : TINKO/OEM

Model Number : KTQC-48230

Certification : CE/ROHS/MSDS/UN38.3

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Supply Ability : 100pcs/day

Packaging Details : 1pc/parer carton

Battery Type : Lifepo4

Voltage : 51.2V

Capacity : 230AH

Weight : 71kg

Size : 525*356*270mm

Usage : home & business

Warranty : 5 years

Cycle Life : ≥6000

Contact Now


 48V / 51.2V Lifepo4 Battery 230AH Battery for the Golf Cart and Sightseeing Car

Product Description

Lithium iron phosphate (LiFePO4 or LFP) batteries have become increasingly popular in the vehicle industry because of their many advantages over traditional lead-acid batteries and even over other lithium-ion batteries.
Lifepo4 batteries have many advantages over traditional lead-acid batteries and other lithium-ion batteries for marine and cart applications also in other vehicles. They are much safer, they have a longer cycle life, higher temperature tolerance, lower self-discharge rate, and higher energy density, which makes them more efficient, durable, and reliable for vehicle use. All these factors make LFP batteries a great choice for marine and vehicle applications such as golf cart, electric forklifts, sightseeing vehicles, pickup trucks, electric boats, yachts, and even ships and sub marine.
TINKO uses grade A LiFePO4 cells to maintain higher energy density, stable performance, and greater power of the battery pack. We are dedicated to provide green power solutions and are one of the leaders in the LiFePO4 battery industry thanks to our top-grade cells and authoritative accreditations.


Product Parameters




Items
51.2V 230Ah Golf Cart LiFePO4 Lithium Battery With Smart BMS 11.8KWH 48V



Specification





Notes





Nominal Capacity







230.0Ah



0.5C / 0.5C, 25℃ ± 2℃, 2.5 V ~ 3.65 V, Fresh cell





Nominal Energy







11.776kWh



Nominal Voltage





51.2V

0.5C discharge, 25℃ ± 2℃, 40 V ~ 58.4 V


     End-off-charge Voltage  (Umax)




58.4 V



/

   End-off-discharge Voltage (Umin)40 V (T > 0℃) 2.0 V (T ≤ 0℃)



/



Standard Charging Current







115 A



0.5C



Maximum Instantaneous Charging Current





2C



30 s, ≤ 80% SOC, 25℃ ±2℃



Standard Discharging Current





115 A



0.5C



Maximum Instantaneous Discharging Current





3C

30 s, ≥ 30% SOC, 25℃ ± 2℃



Initial IR



   0.20 mΩ ± 0.05 mΩ

AC, 1 kHz, 19% ~ 40% SOC, Fresh cell



Direct Current Resistance (DCR)





≤ 1.2 mΩ

25℃, 50% SOC, 1C, 10 s, Fresh cell



Weight





    71kg



/









Dimension



(With Insulation Film )

 Height



      270mm



With Terminal



Length



      525mm



/

Width


           356mm



(300 kgf ±20 kgf compression force, Delivery SOC)





Operation Temperature





Charge Temperature





-10℃~65℃



/



  Discharge Temperature





-35℃~65℃



/




Storage

Temperature





3 months



0℃ ~ 35℃




Delivery SOC



1 month

-20℃ ~ 45℃

Swelling force at EOL



≤ 30000 N



80% SOH

51.2V 230Ah Golf Cart LiFePO4 Lithium Battery With Smart BMS 11.8KWH 48V51.2V 230Ah Golf Cart LiFePO4 Lithium Battery With Smart BMS 11.8KWH 48V




Product Tags:

Golf Cart lifepo4 lithium battery



51.2V 230Ah lifepo4 lithium battery



Smart BMS Golf Cart Battery


Buy cheap 51.2V 230Ah Golf Cart LiFePO4 Lithium Battery With Smart BMS 11.8KWH 48V product

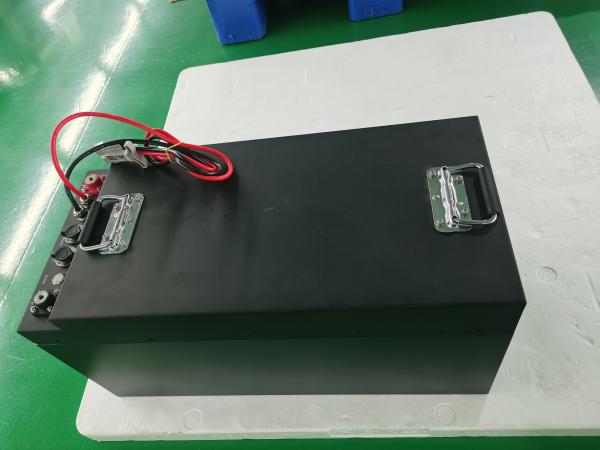

51.2V 230Ah Golf Cart LiFePO4 Lithium Battery With Smart BMS 11.8KWH 48V Images
