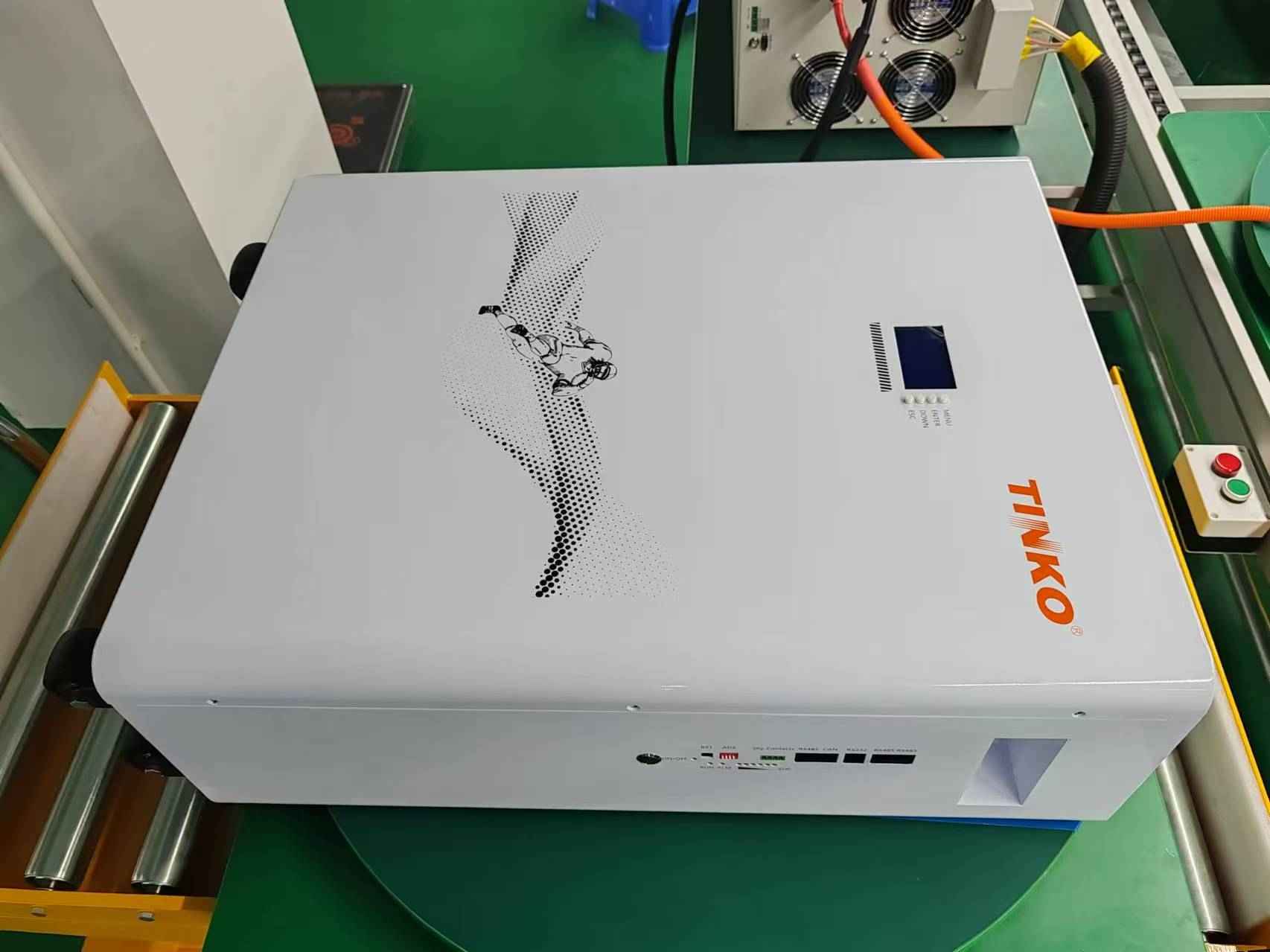

Powerwall 10kwh Lifepo4 Battery 48V 206AH For Energy Storage With Wheel

Brand Name : TINKO/OEM

Model Number : KTLS-48200

Certification : CE/ROHS/MSDS/UN38.3

Place of Origin : China

MOQ : 1PC

Price : Negotiable

Supply Ability : 100pcs/day

Packaging Details : 1pc/parer carton

Battery Type : Lifepo4

Voltage : 48V

Capacity : 206AH

Weight : 94kg

Size : 710*569*245mm

Usage : home & business

Warranty : 10 years

Original : Dongguan, China

Contact Now



10kwh Lifepo4 Battery 48V 206AH For Energy Storage With Wheel



Product Description

Our storage battery is made for A level lifepo4 battery cell which is more stable. They provides a reliable power source during outages, ensuring essential systems remain operational. Also we have different capacity for you to choose according to your power use, and make the best plan which suit every house best. Especially for the ine who lives in remote locations where grid access is limited.





Product Parameters























































Battery Pack



No.



Item



General Parameter



Remark


     1

Combination method



 16S1P

     2

Rated Capacity



   Typical



      206Ah

Standard discharge after Standard charge(for the whole battery pack)



Minimum



     200Ah
     3



Factory Voltage



         51V-53V(40-60%)

Operation Voltage



     4



Voltage at end of

Discharge





40V

Discharge Cut-off Voltage
     5



Charging Voltage





                 56-58.4V









6





Internal Impedance





                 ≤40mΩ

Internal resistance measured at AC 1KHZ after 50% charge



Should use those battery which finished within 1week after shipment and cycles less than 5times to do the measurement







7



Standard charge



Constant Current 40A

Constant Voltage see No.5

0.02CA cut-off



Charge time : Approx 5 . 0 h (

Limiting current



                    210A



8



Standard discharge





Constant current:40A end voltage see NO.4





9

Maximum Continuous Charge Current





210A



≥10ºC



10



Operation Temperature

Range

 Charge : 0~55℃

60±25%R.H.

Bare Cell
Discharge : -20~60℃







11





Storage

Temperature Range



    Less than 12 months :

    -10~35℃







60±25%R.H.at the shipment state



  Less than 3 months: -10~45℃

Less than 7 day : -20~65℃
    12



          Dimensions



 568*245*907mm Include Bracket
    13



              Weight



 Approx :101kg
