2S3P 7.4 V Lithium Ion Battery Pack 18650 7500mah For Big Toys And Devices

Brand Name : TINKO/OEM

Model Number : TK18650 2S3P

Certification : CE/ROHS/MSDS/UN38.3

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Supply Ability : 100pcs/day

Packaging Details : parer carton

Voltage : 7.4

Capacity : 7500mah

Battery Connection : 2S3P

Protection : PCM/PCB

Material : Lithium ion

Dimension : 38*67*38mm

Contact Now

Customized 2S2P 18650 Lithium-ion Battery Pack 7.4V for Digital Product


Battery Description

This lithium battery pack is with 6 18650 battery cell, with the pack way 2S3P makes it's voltage  7.4V and high capacity to 7500mah. The battery cell is high rate kind, it allowed 3C discharge, very suit for the high power device.
 TINKO lithium-ion batteries are widely used due to their advantageous features. They have a high energy-to-weight ratio, so they can store more energy in a smaller, lighter package compares to other. They also can work hundreds to thousands of charge and discharge cycles, making them durable for long-term use. Their low self-discharge allowed them to retain charge for extended periods when not in use. With these features the lithium battery used in a variety of applications, from consumer electronics (smartphones, laptops) to electric vehicles. Their voltage and capacity also can be designed through different usage.



Battery Parameters



                                     ITEM


                      SPECIFICATION


Capacity

Rated capacity



7500mAh by standard charge and discharge




Typical capacity


7800mAh by standard charge and discharge


Nominal voltage


                                            7.4V


Energy




Rated Energy


                                         55.5Wh


Typical Energy


57.72Wh



Limited charging voltage (Ucl)



 8.40V



End of discharge voltage(Ude)



 5.5V



Upper limited charging voltage(Uup)



 8.5V



Discharge cut-off voltage(Udo)



 4.00V



Standard charging current(Icr)



 0.5C



Standard discharging current(Idr)



 0.2C



Maximum charging current(Icm)



 1C (7500mA, 25℃,not for cycle life)



Maximum discharging current(Idm)



 3C (22.5A, 25℃,not for cycle life)








Using

temperature

range





Upper limited charging temperature(Tcm)







45℃



Lower limited charging temperature(Tcl)







0℃



Upper limited discharging temperature(Tdm)





60℃



Lower limited discharging temperature(Tdl)





-20℃

Allowable maximum

surface temperature (Tmax)



 Charge


55℃ (Recommended recharge release ≤45℃


Discharge


70℃ (Recommended re-discharge release ≤60℃

Storage temperature



1 year: -20~25℃

3 months: -20~45℃

1 month: -20~60℃
Humidity range



0 ~ 60% RH (non-condensing)



Internal resistance




≤ 130 mΩ(AC Impedance, 1000 Hz)




Weight


 ≤ 300g

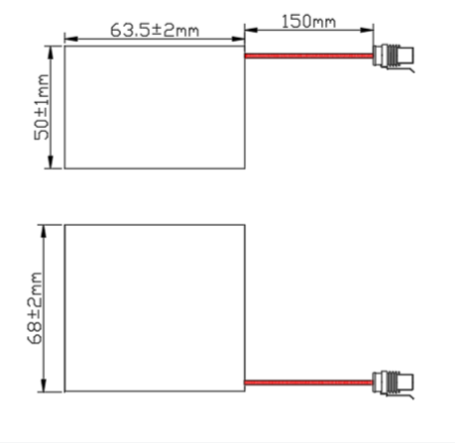

Product Drawing

2S3P 7.4 V Lithium Ion Battery Pack 18650 7500mah For Big Toys And Devices



Product Applications







2S3P 7.4 V Lithium Ion Battery Pack 18650 7500mah For Big Toys And Devices
