TINKO 18650 Lithium Ion Battery 7.4 V 2600mah For Toys And Devices

Brand Name : TINKO/OEM

Model Number : TK18650 2S2P

Certification : CE/ROHS/MSDS/UN38.3

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Supply Ability : 100pcs/day

Packaging Details : parer carton

Voltage : 7.4

Capacity : 4400mah

Battery Connection : 2S2P

Protection : PCM/PCB

Material : Lithium ion

Dimension : 38*67*38mm

Contact Now

Customized 2S2P 18650 Lithium-ion Battery Pack 7.4V for Digital Product





Battery Description



TINKO 7.4V 18650 2S2P battrey pack 4400mah with PCM board is a common model which is widely used bu customer for their electric product such as fans, toys and lights. The lithium-ion batteries are widely used due to their advantageous features. They have a high energy-to-weight ratio, so they can store more energy in a smaller, lighter package compares to other. They also can work hundreds to thousands of charge and discharge cycles, making them durable for long-term use. Their low self-discharge allowed them to retain charge for extended periods when not in use. With these features the lithium battery used in a variety of applications, from consumer electronics (smartphones, laptops) to electric vehicles. Their voltage and capacity also can be designed through different usage.







Battery Parameters





     No



                         Term                  Standard value                 Notes



1





Nominal capacity



 4400mAh 0.2C Discharge



Minimum Capacity



 4300mAh 0.2C Discharge
2



Nominal voltage



 7.4V



3



 Resistance   After standard charge, AC 1KHz test
Battery Pack:≤160 mΩ
4



Charge limit voltage



 8.4±0.05V
5

Charging method

CC/CV



charge with constant current 0.2C to 8.4V,then

charge with constant voltage8.4V till charge current

is less than 0.01C


6



Standard charge current



 880mA 0.2C
7



Maximum charge current



 2200mA 0.5C
8



Standard discharge current



 880mA 0.2C
9



Maximum discharge current



 2200mA 0.5C
10



Discharge cut-off voltage





2.3±0.08V





PCB End-of-charge Voltage


11



Cell discharge cut-off voltage



 2.75V
12



Operating Temperature



 0～45℃ Charge
-10～60℃ Discharge



13



 Storage temperature



0～45℃





Less than a month





10～30℃



Less than three months
14



Storage Humidity



 65%±20%RH
15



Weight



 Approx:186.1±2g
16



Battery storage for 3 months need to charge and discharge a loop to 7.2V～7.8V

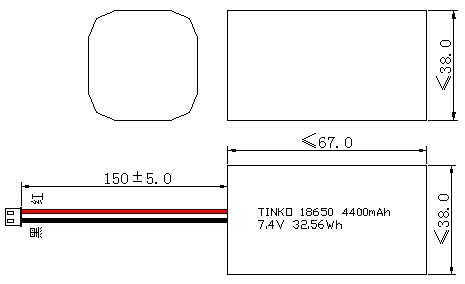

Product Drawing





TINKO 18650 Lithium Ion Battery 7.4 V 2600mah For Toys And Devices



Product Applications







TINKO 18650 Lithium Ion Battery 7.4 V 2600mah For Toys And Devices
