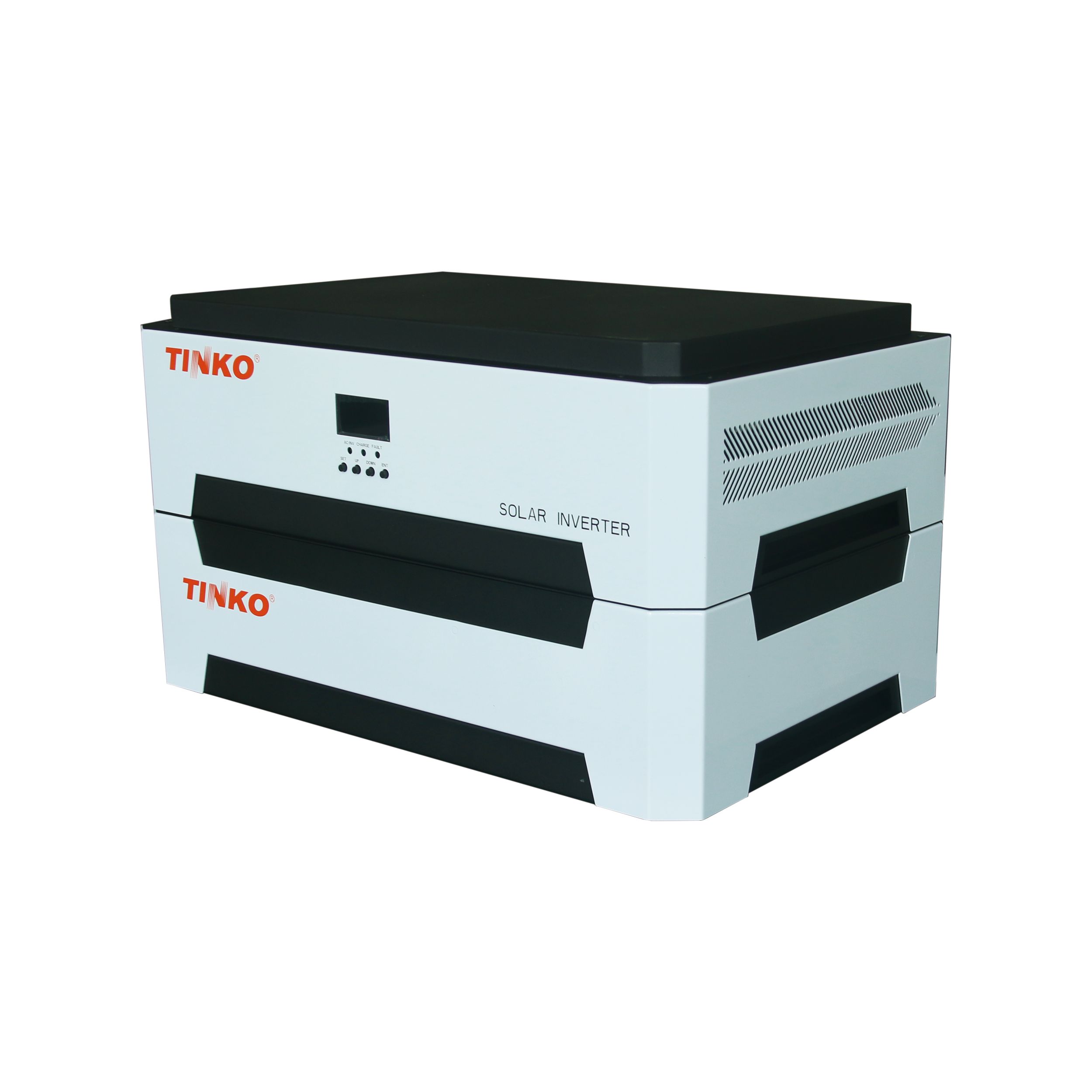

51.2V / 48V 100AH Lifepo4 Battery Pack With Inverter Stacked Upside 6000 Times Cycle Life

Product Categories
Dongguan KunTeng New Energy Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

51.2V / 48V 100AH Lifepo4 Battery Pack With Inverter Stacked Upside 6000 Times Cycle Life

  • 1
  • 2

Brand Name : TINKO/OEM

Model Number : KTA-48100

Certification : CE/ROHS/MSDS/UN38.3

Place of Origin : China

MOQ : 1PC

Price : Negotiable

Supply Ability : 100pcs/day

Packaging Details : 1pc/parer carton

Battery type : lifepo4 battery

Voltage : 51.2V

Capacity : 100AH

Energy : 5.12kWh

Dimension : 635*400*365mm

Weight : 65kg

Communication Port : RS485, RS232, CAN

Cycle Life : ＞6000 times

Contact Now

All in one Lifepo4 Battery 51.2V / 48V 100AH For Residential Solar Storage System

Product Description

The lifepo4 battery is made with lithium iron phosphate as the cathode material, which contributes to their unique properties. It maintain a consistent voltage throughout the discharge cycle, providing reliable power delivery. Performed well in a wider range of temperatures, enhancing usability in diverse environments. LiFePO4 batteries are gaining popularity due to their safety, longevity, and environmental benefits, making them a strong choice for a variety of energy storage needs.
Our lifepo4 battery all use A grade battery cell which is more reliable and has quality guarantee. Also the battery capacity and voltage can achieve higher by connected each lifepo4 battery module in parallel or in series. The product can be comstermized as your wish.




Product Parameters (Battery Pack)





























Battery Pack





No.





Item



General Parameter



Remark


     1



Combination method



 16S1P



2

Rated Capacity



   Typical



 100Ah

Standard discharge after Standard charge(for the whole battery pack)


Minimum



 100Ah
      3

Factory Voltage



 51V-53V(40-60%)

Operation Voltage





4



Voltage at end of

Discharge



40V

Discharge Cut-off Voltage
      5



Charging Voltage



 40-58.4V





6




Internal Impedance







≤40mΩ

Internal resistance measured at AC 1KHZ after 50% charge



Should use those battery which finished within 1week after shipment and cycles less than 5times to do the measurement





7



Standard charge



Constant Current 20A

Constant Voltage see No.5

0.02CA cut-off


Charge time : Approx 5 . 0 h



Limiting current



 80A



8



Standard discharge



 Constant current:20A end voltage see NO.4
     9      Maximum Charge                Voltage



100A



≥10ºC



10



Maximum Continuous Discharge Current





100A

 ≥10ºC



11



Operation Temperature Range



 Charge : 0~55℃

60±25%R.H.

Bare Cell


Discharge: -20~60℃



   12


Storage Temperature Range




   Less than 12 months :- 10~35℃





60±25%R.H.at the shipment state




 Less than 3 months: - 10~45℃





Less than 7 day : -20~65℃


    13


Dimensions


 635*400*192mm Include Bracket
    14


Weight


 Approx :47kg




 Product Parameters (Inverter)





Model



 HSI 5500



AC mode





Rated input voltage



 220/230Vac



Input voltage range



 ( 170Vac~280Vac) ±2% (90Vac-280Vac) ±2%



Frequency



 50Hz/ 60Hz (auto-detect)



Frequency range



 47±0.3Hz ~ 55±0.3Hz (50Hz); 57±0.3Hz ~ 65±0.3Hz (60Hz);



Overload/short- circuit protection



 Breaker



Efficiency



 >95%



Conversion time





10ms (Typical value)



(Bypass and inverting)





AC reverse flowing protection



 yes



Maximum bypass overload current



 40A



Inverting mode





Output voltage waveform



 Pure sine wave



Rated output power (VA)



 5500



Rated output power (W)



 5500



Power factor



 1



Rated output voltage (Vac)



 230Vac(200/208/220/240Vac Settable)



Output voltage error



 ±5%



Output frequency range (Hz)



 50Hz ± 0.3Hz/60Hz ± 0.3Hz



Efficiency



 >90%

Overload protection

( 102%<load<125%): Alarm and shutdown after 5 minutes.

( 125%<load<150%): Alarm and shutdown after 10 seconds.

Load>150%: Alarm and shutdown after 5 seconds.



Peak power



 11000VA



Loaded motor capacity



 4HP



Output short-circuit protection



 Breaker



Specification of bypass breaker



 40A



Rated battery input voltage



 48V (minimum start voltage 44V)



Battery voltage range



40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm/turnoff voltage/overvoltage

 alarm/overvoltage restoration…settable LCD screen)



51.2V / 48V 100AH Lifepo4 Battery Pack With Inverter Stacked Upside 6000 Times Cycle Life
