14500 li ion rechargeable battery 1000mah With Wire And Connector 3.7V

Product Categories
Dongguan KunTeng New Energy Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

14500 li ion rechargeable battery 1000mah With Wire And Connector 3.7V

  • 1
  • 2
  • 3

Brand Name : TINKO/OEM

Model Number : TK18650

Certification : CE/ROHS/MSDS/UN38.3

Place of Origin : China

MOQ : 5000PCS

Price : Negotiable

Supply Ability : 100pcs/day

Packaging Details : parer carton

Voltage : 3.7

Capacity : 2600mah

Battery Connection : 3S1P

Protection : PCM/PCB

Material : Lithium ion

Dimension : 55.5*19*70.5mm

Contact Now

High Discharge Rate 14500 1000mah Lithium-ion Rechargeable Battery Pack 3.7V for Toys





Battery Description



TINKO 3.7V 14500 battery 1000mah battery pack use the A grade cell. It is widely used by customer for their electric products such as fans, toys, lights, cameras and so on. Lithium-ion batteries are widely used because of their many advantageous features. They have a high energy-to-weight ratio compares to other types of battery, so they can store more energy in a smaller, lighter package. The energy density it have is about 6-7 times than lead acid battery. They also can endure hundreds to thousands of charge and discharge cycles, so their lifespan is also much longer. Their low self-discharge allowed them to retain charge for extended periods when not in use. Also their self discharge rate is very lower. With these features the lithium battery used in a variety of applications, from consumer electronics (smartphones, laptops) to electric vehicles. Their voltage and capacity also can be designed through different usage.







Battery Parameters





NO.



                            Item

                               Specifications
1



Typical Capacity



 1000mAh @ 0.2C Discharge



Minimum capacity



 1000mAh @ 0.2C Discharge
2



Nominal voltage



 3.7V
3



Standard Charge



 CC/CV,0.2C5A, 4.20V
4



Standard Discharge



 CC,0.2C5A, 3.00V
5



End-of-charge Voltage



 4.20V±0.05V
6



End-of-charge Current



 0.02C5A (At CV mode)
7



End-of-discharge Voltage



 3.00 V
8



Charging Time



 6.5hours(standard charge)
9



Quick Charge Current



 1000mA (1.0C5rate)
10



Quick Discharge Current



 2000mA (2.0C5rate)
11



Max Discharge Current



 3000mA (3.0C5rate)
12



Initial Impedance



 Max:200mΩ
13



Weight



 Approx:21±1g
14



Operating temperature



Charging: 0℃~45℃

Discharging:-20℃~60℃
15



Storage temperature



 -5℃~35℃
16



Storage Humidity



 ≤75% RH



17



 Appearance  Without scratch, distortion, contamination and leakage
18



Standard environmental condition



Temperature : 25±2℃

Humidity : 45-75%RH

Atmospheric Pressure : 86-106 KPA
19



Temperature Dependence of Discharge Capacity

 @ 0.2C Discharge





Charge temperature



 Discharge temperature



25℃





-10℃





0℃





25℃





40℃





60℃





Relative Capacity



 70% 80% 90% 100% 95%

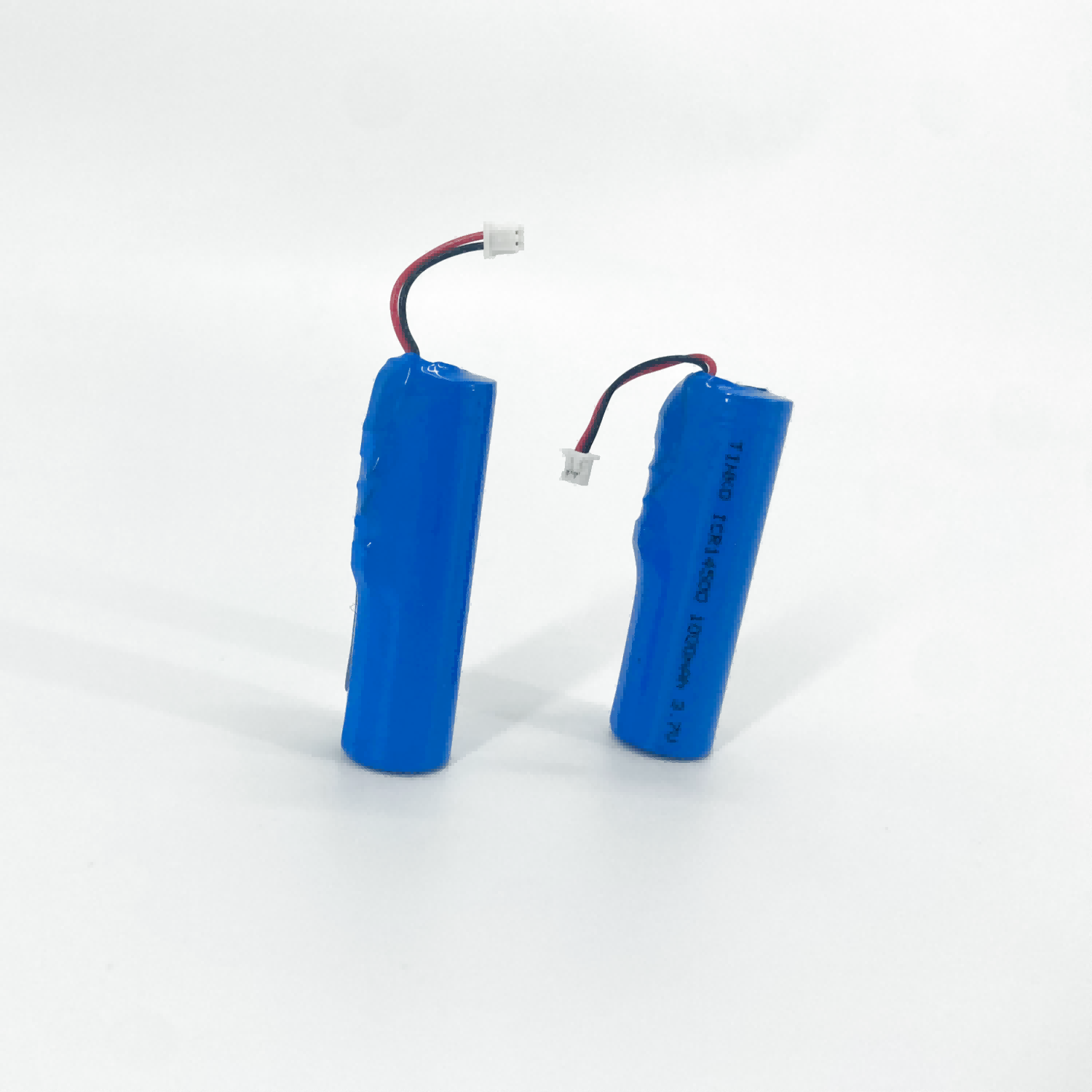

Product Drawing / PICS





14500 li ion rechargeable battery 1000mah With Wire And Connector 3.7V 14500 li ion rechargeable battery 1000mah With Wire And Connector 3.7V





Product Applications







14500 li ion rechargeable battery 1000mah With Wire And Connector 3.7V
