Customized 18650 Lithium Ion Battery Pack 11.1V 2500mAh For Portable Electric Products

  • 1
  • 2
  • 3

Brand Name : TINKO/OEM

Model Number : TK18650 3S1P

Certification : CE/ROHS/MSDS/UN38.3

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Supply Ability : 100pcs/day

Packaging Details : parer carton

Voltage : 11.1

Capacity : 2600mah

Battery Connection : 3S1P

Protection : PCM/PCB

Material : Lithium ion

Dimension : 55.5*19*70.5mm

Contact Now

Rechargeable Customized 18650 Lithium-ion Battery Pack 3S1P 2500MAH for Robot





Battery Description



TINKO 11.1V 18650 battrey pack 2500mah assembled with PCM board is a common model which is widely used by customer for their electric product such as fans, toys and lights. Our lithium-ion batteries are widely used because of their advantageous features. They have a high energy-to-weight ratio compares to other types of battery, so they can store more energy in a smaller, lighter package. They also can endure hundreds to thousands of charge and discharge cycles, so their lifespan is also much longer. Their low self-discharge allowed them to retain charge for extended periods when not in use. With these features the lithium battery used in a variety of applications, from consumer electronics (smartphones, laptops) to electric vehicles. Their voltage and capacity also can be designed through different usage.







Battery Parameters



NO.



                            Item                                Specifications
1



Typical Capacity



 2500mAh @ 0.2C Discharge



Minimum capacity



 2480mAh @ 0.2C Discharge
2



Nominal voltage



 11.1V
3



Standard Charge



 CC/CV,0.2C5A,12.6V
4



Standard Discharge



 CC,0.2C5A, 9.00V
5



End-of-charge Voltage



 12.6V±0.1V
6

E

nd-of-charge Current



 0.02C5A (At CV mode)
7



End-of-discharge Voltage



 9.00 V
8



Charging Time



 8.0hours(standard charge)
9



Quick Charge Current



 2500mA (1.0C5rate)
10



Quick Discharge Current



 5000mA (2.0C5rate)
11



Max Discharge Current



 7500mA (3.0C5rate)
12



Initial Impedance



 Max: 230mW
13



Weight



 Approx:144±2g
14



Operating temperature



Charging: 0℃~45℃

Discharging:-20℃~60℃
15



Storage temperature



 -5℃~35℃
16



Storage Humidity



 ≤75% RH
17



Appearance





Without scratch, distortion, contamination and leakage


18



Standard environmental condition



Temperature : 25±2℃

Humidity : 45-75%RH

Atmospheric Pressure : 86-106 KPA
19



Temperature Dependence of Discharge Capacity

@ 0.2C Discharge


25℃

-10℃



0℃



15℃



25℃



40℃





Relative Capacity



 50% 80% 90% 100% 100%

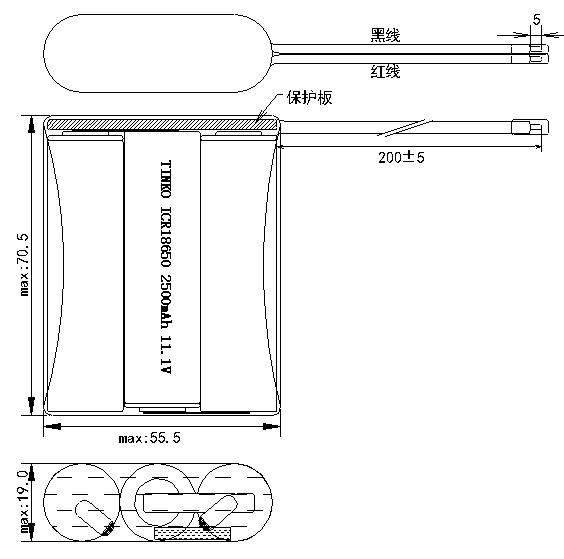

Product Drawing



Customized 18650 Lithium Ion Battery Pack 11.1V 2500mAh For Portable Electric Products





Product Applications







Customized 18650 Lithium Ion Battery Pack 11.1V 2500mAh For Portable Electric Products
